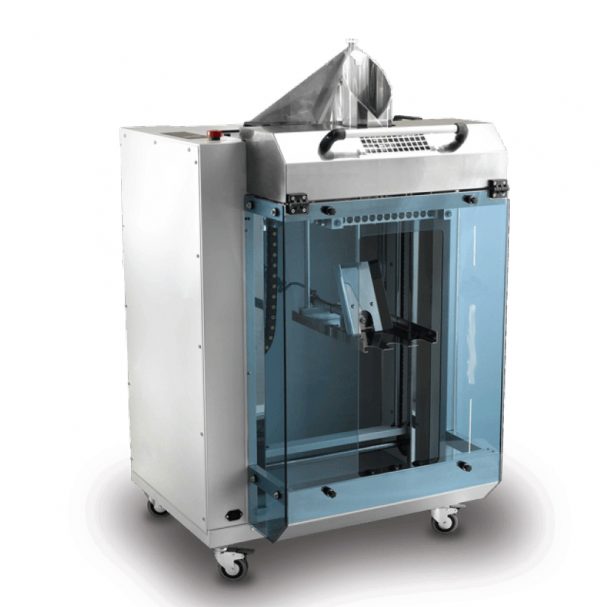

LPS X-Bag Evo Vertical Bagging System
Product Information
- Speed: Up to 1000 products per hour
- Bag Length: 50-330mm 600mm with optional belt
- Bag Width: 130mm, 180mm & 230mm with optional collar
- Max Reel Dimensions (diameter): 250mm
- Max Reel Dimensions (width): 360/410/420mm
- Type of Film to Use: Polyethylene, polyolefin, macro-punched, micro-punched, coupled, biodegradable films, carotene plastic
- Horizontal Sealing: At constant and controlled temperature
- Film Thickness: From 15 micron to 50 micron
- Type of Film: PE, HDPE, Polyolefin, Polyethylene and many other types of poly film
- Power Supply: 230VAC – Compressor is required
- Machine Dimensions: 800mm x 850mm x 1500mm
- Machine Weight (net/gross): 130/165 (MF99MB73), 135/170 (MF99MB74)
- Optional Features: Shaping collars for 130, 180, 230mm wide bags
Product Specification:

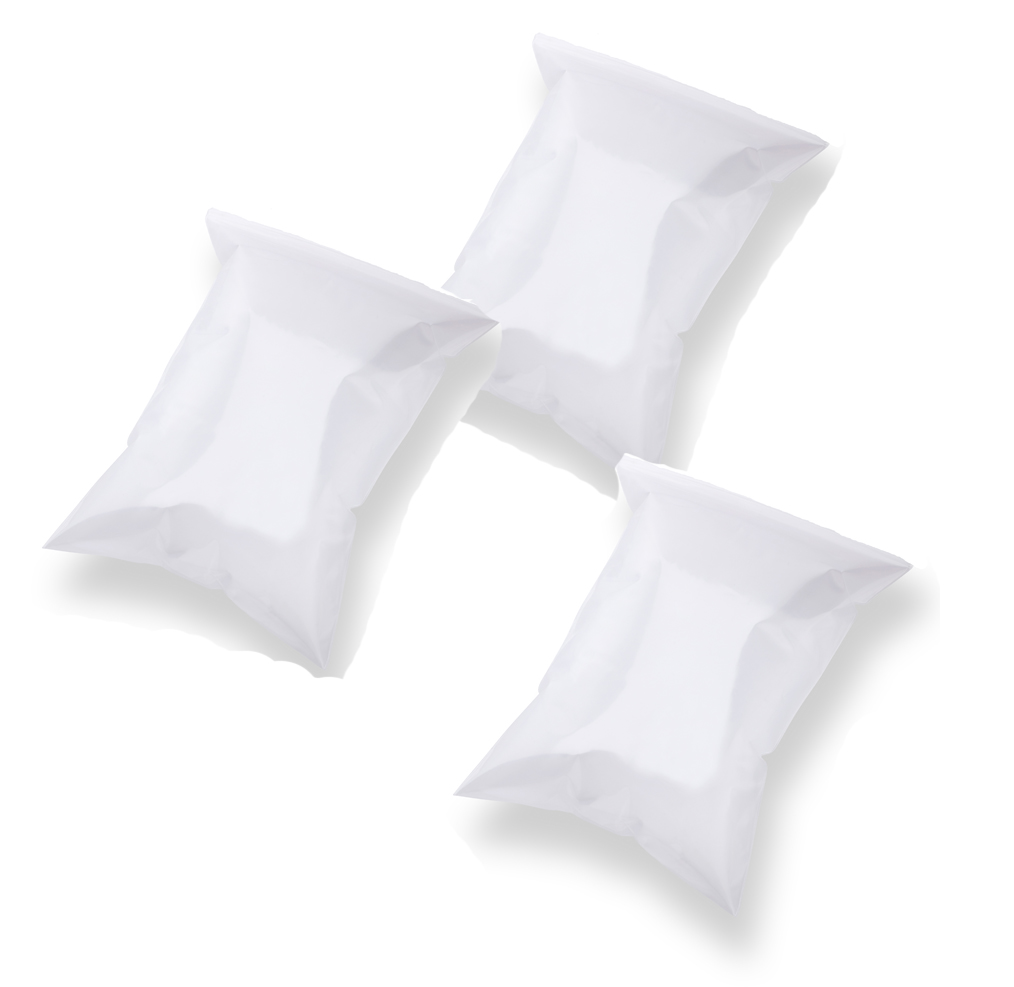

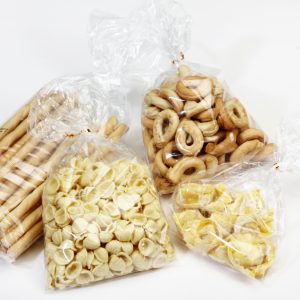

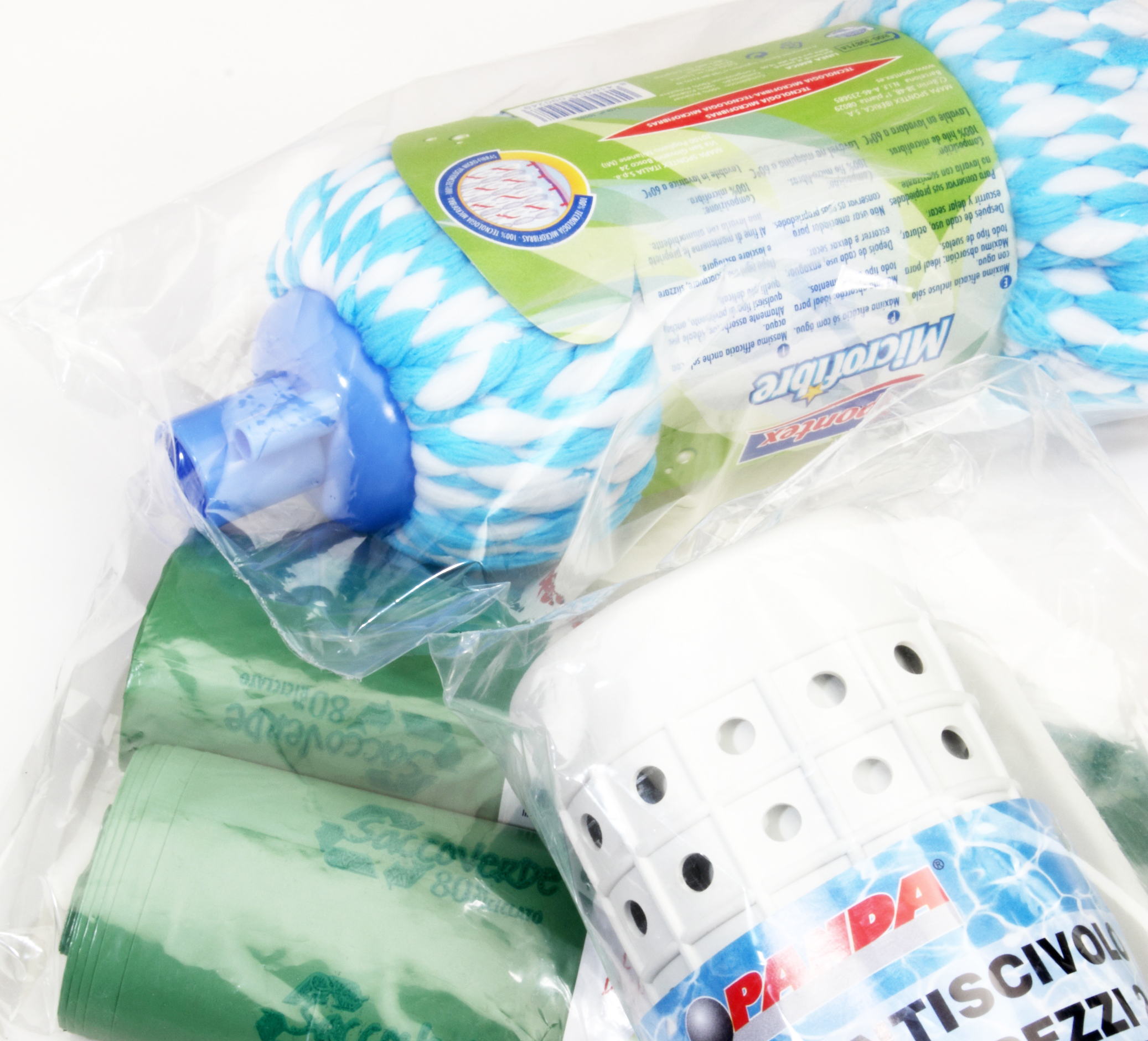

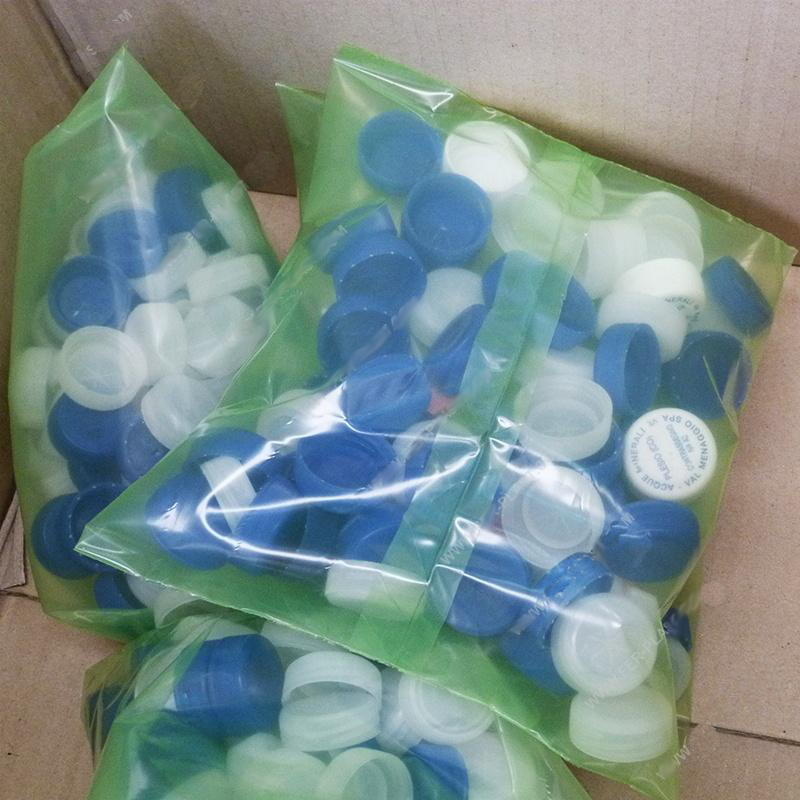

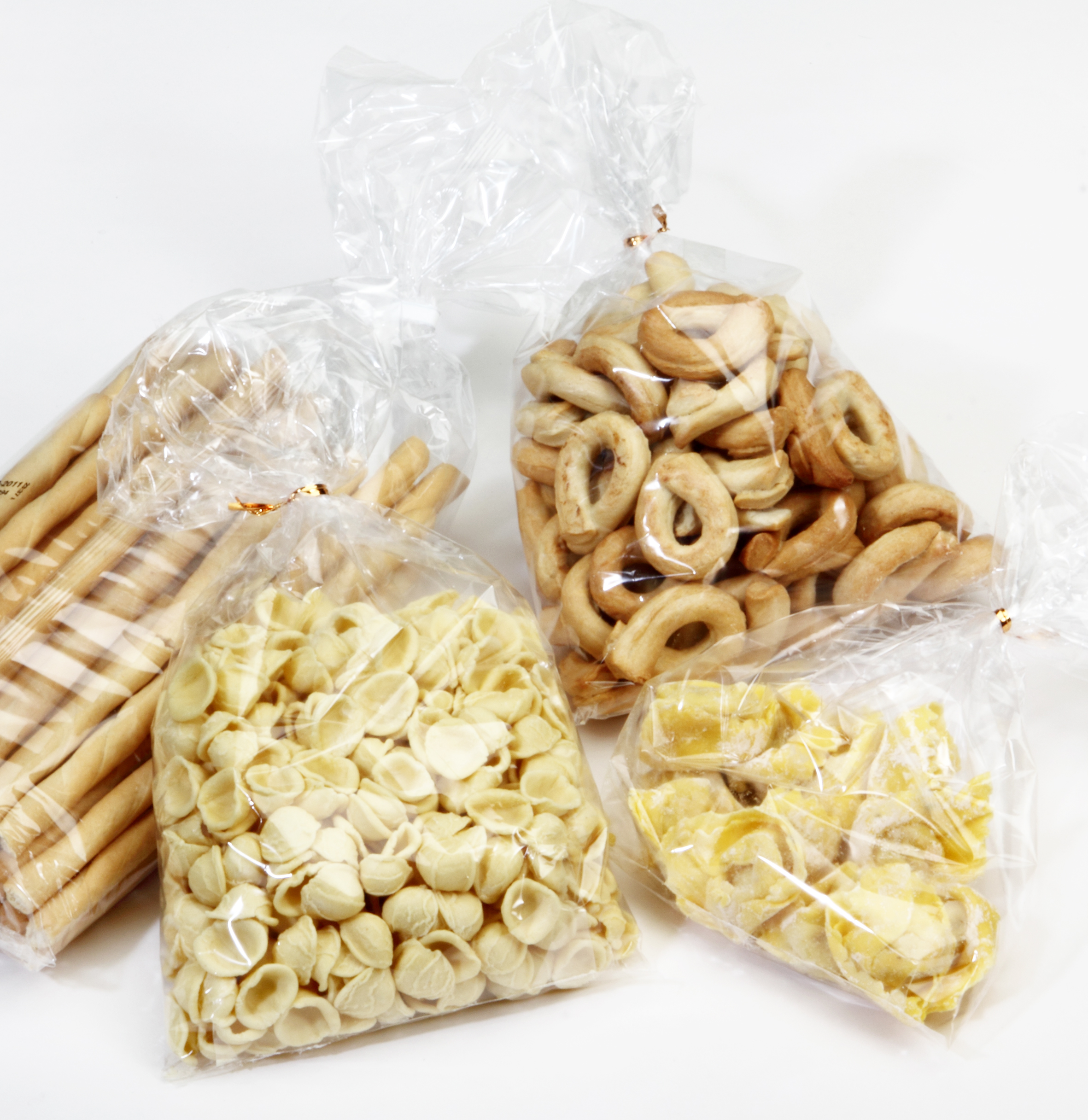

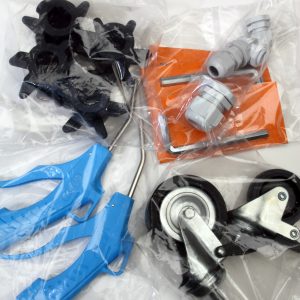

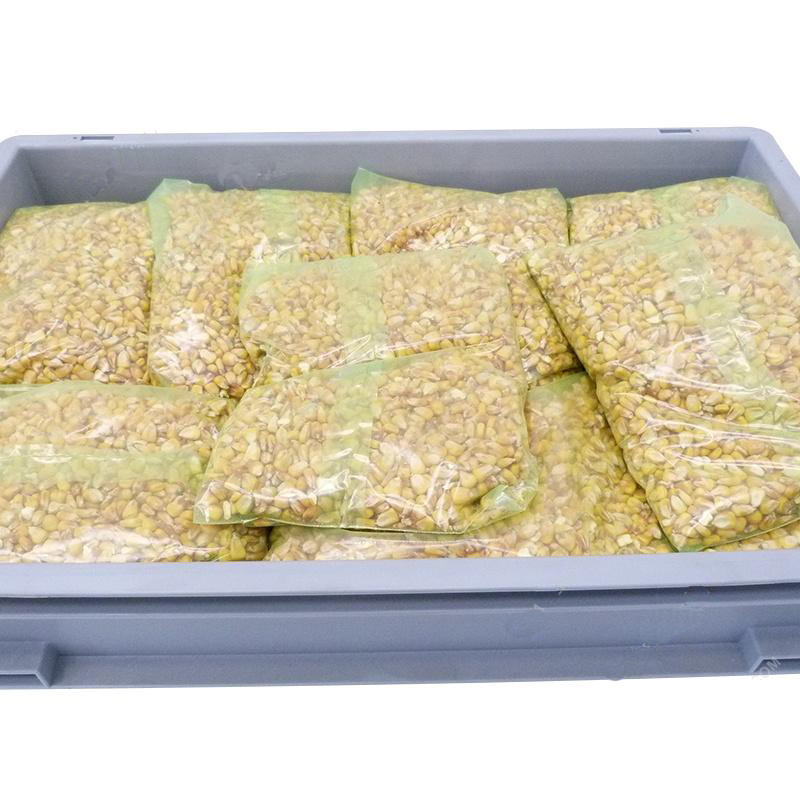

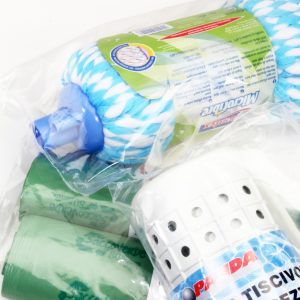

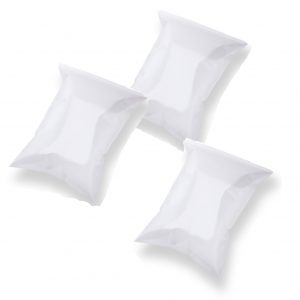

The LPS X Bag manual bagging system is an easy to use packaging machine which can bag and seal a range of products, up to 5 kg in weight in a clear watertight polyfilm bag. From lightweight items such as bread, powders or granulated products to heavy products such as screws and mechanical parts, all can be bagged to be presented in a clear, appealing and secure way.
Key Features:
- Ideal for protecting products and presenting them in a clear way
- Up to 1000 packs per hour can be bagged
- All bags are watertight
- Adjustable bag lengths from 20mm to 600mm
- Can hold up to 5kg per bag
- Strong and built to last
- Clear or pre-printed poly films can be used
- Just plug in and use
- Safe and easy to use
- 10 programmable settings
- Patented technology
